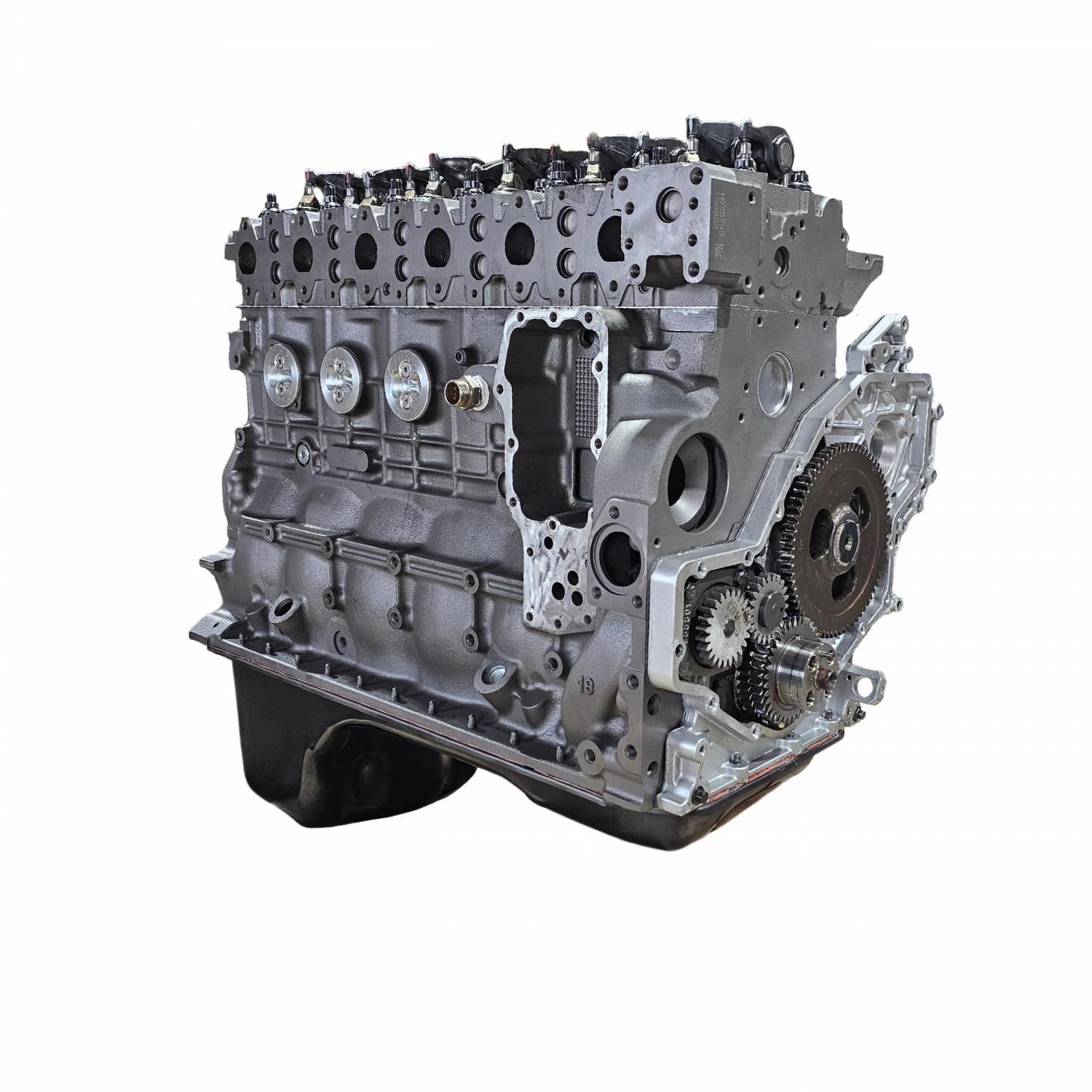

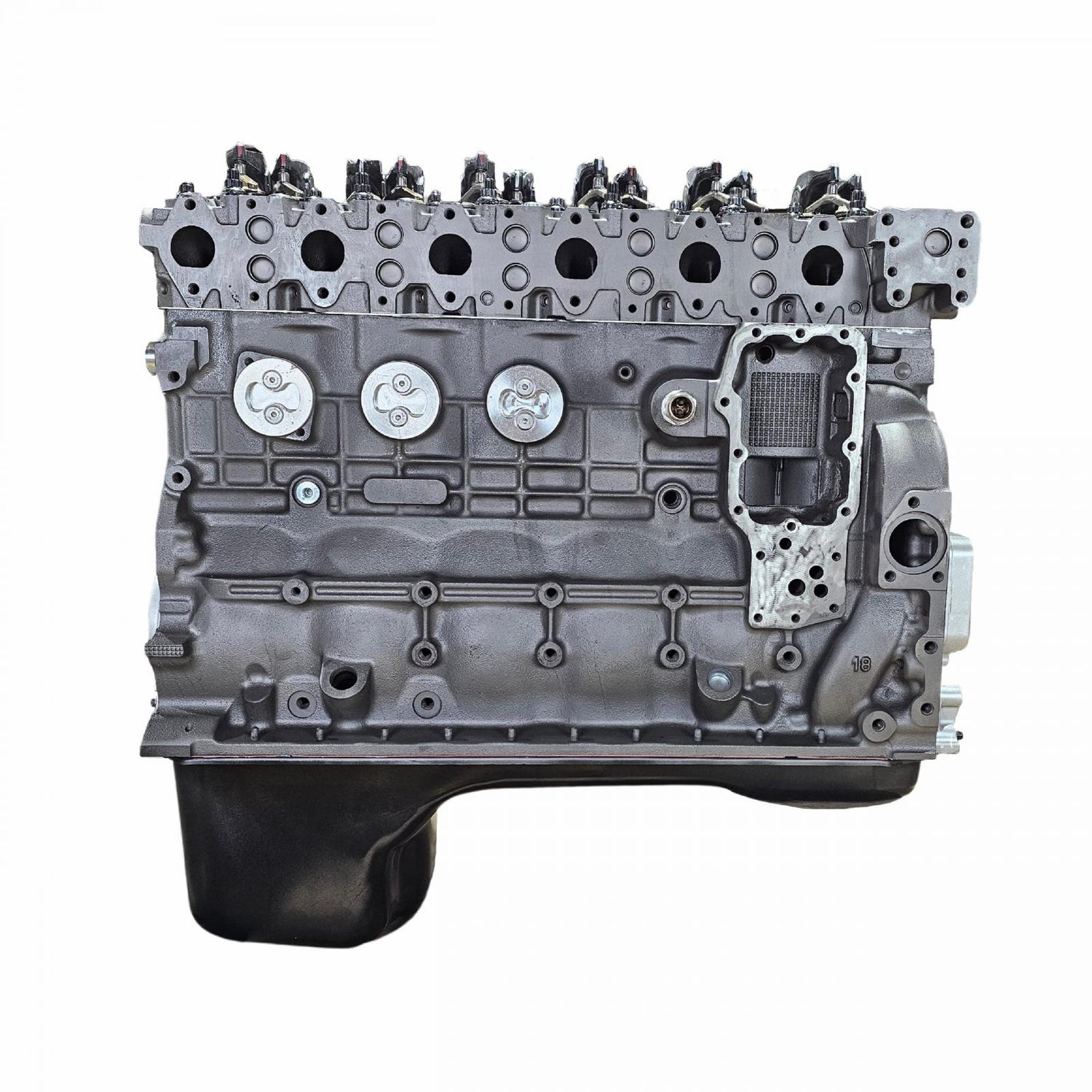

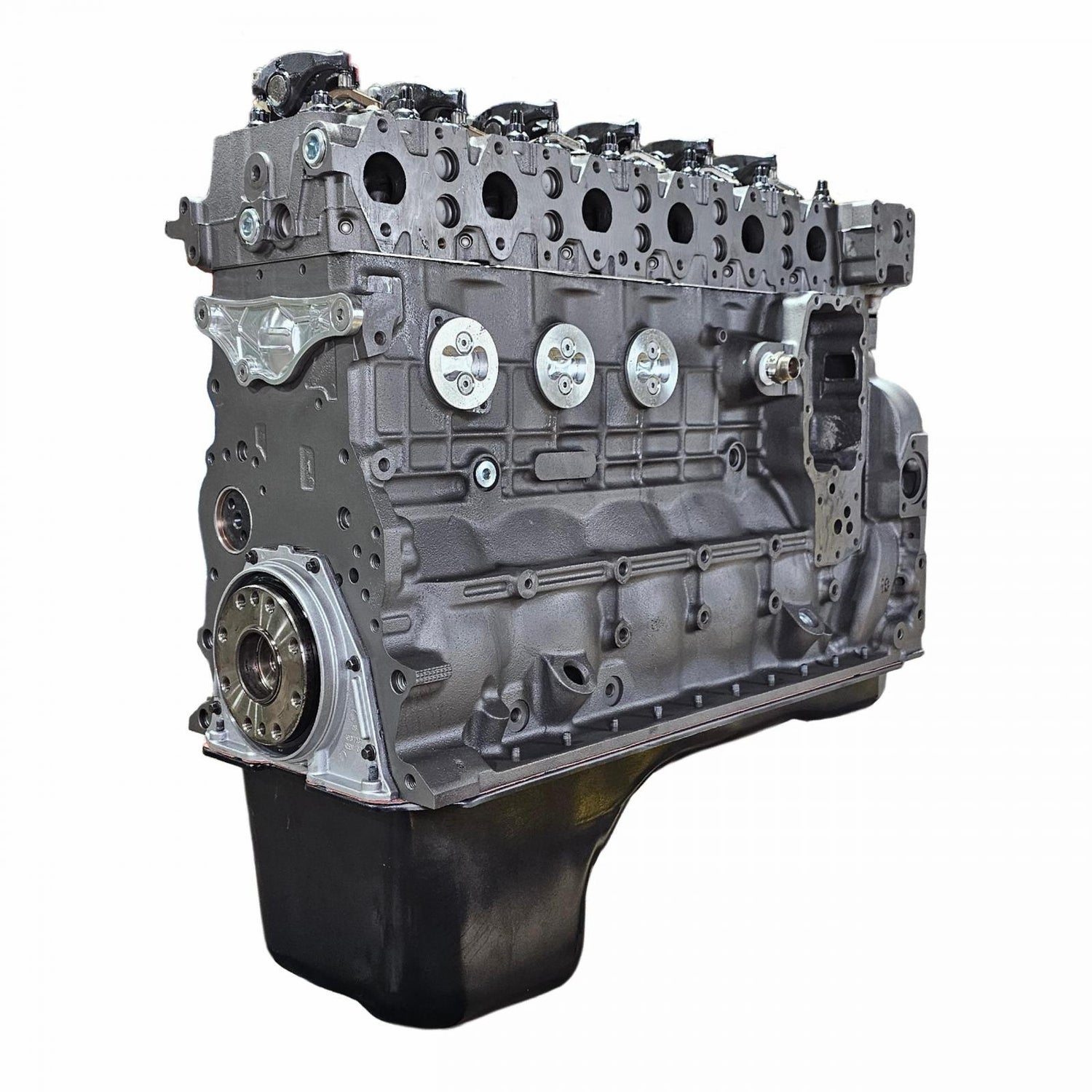

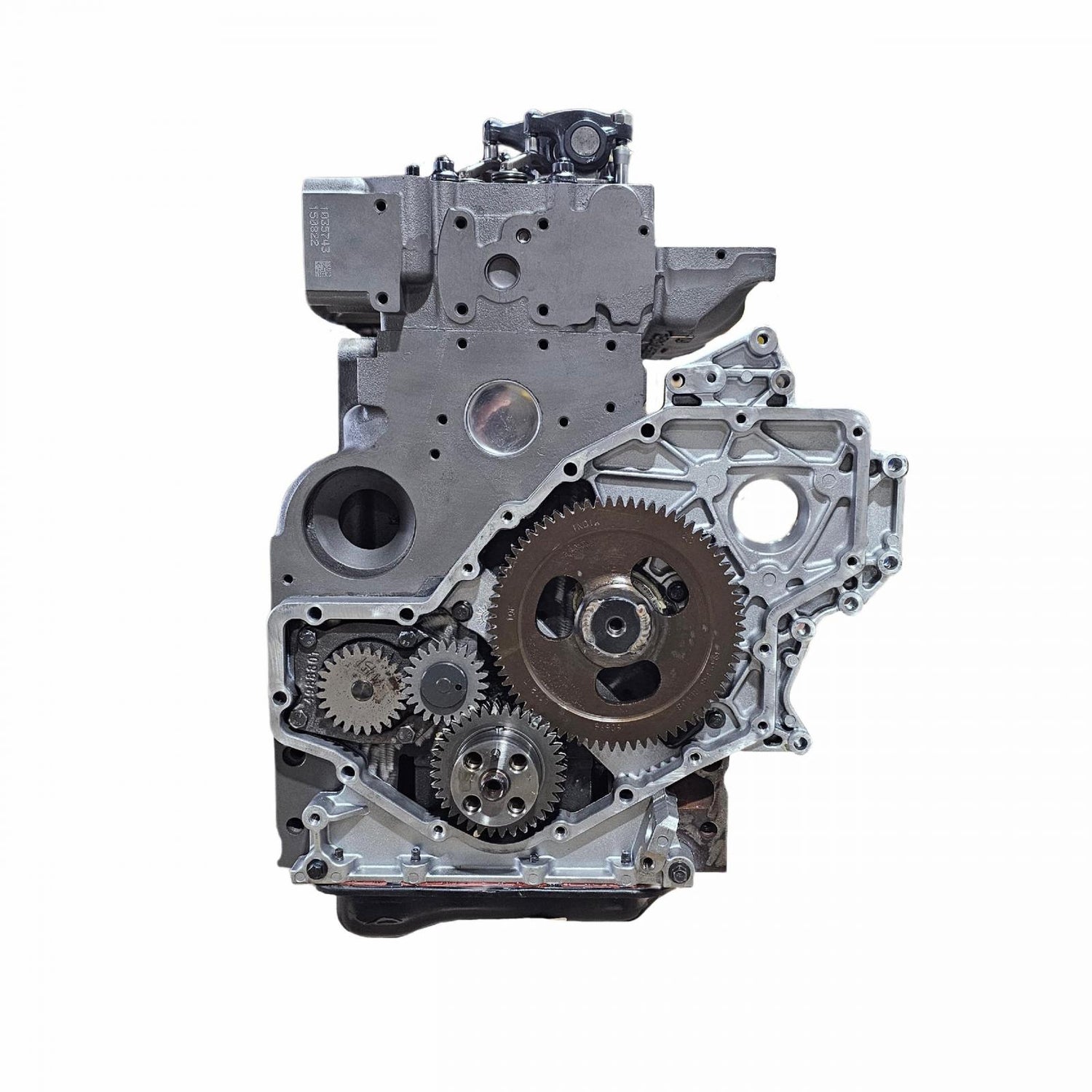

6.7L Cummins Long Block Workhorse 2007.5-2018 Dodge Diesel Engine Choate Performance

CHOATE-6.7L Cummins Workhorse Long Block Engine 2007.5-2018 - Dodge Cummins Diesel

Engine Manufacturer: CHOATE Engineering Performance

CHOATE Part Number:CEP67CLW

6.7L Cummins Workhorse Long Block Engine Includes:

• New Freeze Plugs
• Rear Main Seal
• Head Studs
• Remanufactured Head
• New Oil Pump
• New Guides
• New Valve Seals
• CNC Valve Machining
• Pressure Tested
• Surfaced to exceed Ra finish for MLS Gaskets
• New Tappets
• New Pin Retainers
• Balanced and weight matched Rotational Assembly
• OE Crank Flange Bolts
• New Rod Bearings
• New Main Bearings
• New Cam Bearings
• Install Rear Main Seal
• Install New Rear Cover Gasket
• Install Upper Oil Pan
• Install Lower Oil Pan
• Billet Freeze Plugs
• Install Pickup Tube O-ring
• O-Ring Cylinder Head
• Chromoly Push Rods
• Coated, Flycut, and Delipped G3 Pistons
• 5 year/100k Mile Warranty

Machining Processes Include:

• Full CNC blue print machining, (bore, deck, hone and line honed
• The Cylinder bores are blue print bored to a true 90 degrees over the crankshaft center line
• Diamond honed to within .0002 inch for precise piston to cylinder bore clearance
• Bored and line hone the crank bore housing to precisely align the crankshaft in the engine block.
• Torque Plate Hone
• The piston diameter measured to the nearest .0001 inch matched to cylinder bores.
• The Cylinder block is surfaced to a finish of RA30 or lower, which meets the factory specification in both flatness and smoothness for the block to head sealing surfac
• This is mandatory for proper sealing of a MLS Gasket.

Optional Parts are not installed. Optional parts are covered under the manufacturer's warranty and not by CHOATE.
